\(QS170_{1}^{(7)}\)
Description
Phase Portrait
Topological Invariants
| TCSP |
|---|
| \(170\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = x^{2} \\ \dot{y} = b + x \, y \end{cases}\]
with parameters: \(b = 1\)

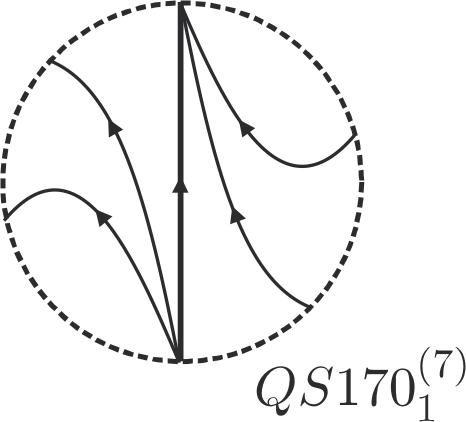

has the following phase portrait done with P4. If you want, you may download the P4 file here.
The phase portrait appears in the following papers
- With name \(23\) in {J. C. Artés, J. Llibre and N. Vulpe}, Quadratic systems with a rational first integral of degree 2: A complete classification in the coefficient space $ R^{12$}, emph{Rend. Circ. Mat. Palermo}, textbf{56}, no. 3 (2007), 417--444.
- With name \(13\) in {J. C. Artés, J. Llibre, D. Schlomiuk and N. Vulpe}, Invariant conditions for phase portraits of quadratic systems with complex conjugate invariant lines meeting at a finite point, Rend. Circ. Mat. Palermo (2) { bf 70} (2021), no.~2, 923--945; MR4286006
- With name \(PP16\) in {J. C. Artés, J. Llibre and Huaxin Ou}, Quadratic systems with two invariant straight lines and an invariant hyperbola, {Preprint} (2026).
- With name \(DI8\) in {L. Cairó and J. Llibre}, Phase portraits of quadratic polynomial vector fields having a rational first integral of degree 2. Nonlinear Anal. 67 (2007), no. 2, 327–348.
- With name \(52\) in {B. Coll, A. Ferragut and J. Llibre}, Phase portraits of the quadratic systems with a polynomial inverse integrating factor, Internat. J. Bifur. Chaos Appl. Sci. Engrg. { bf 19} (2009), no.~3, 765--783; MR2533481
- With name \(C2.9\) in {D. Schlomiuk and N. Vulpe}, The full study of planar quadratic differential systems possessing a line of singularities at infinity, emph{J. Dynam. Differential Equations}, { bf 20}, no. 4 (2008), 737--775.
- With name \(P5\) in {D. Schlomiuk and X. Zhang}, Quadratic differential systems with complex conjugate invariant lines meeting at a finite point, emph{J. Differential Equations}, { bf 265}, no. 8 (2018), 3650--3684.
- With name \(Fig 1 C-1.5L1\) in {J. C. Artés, L. Cairó and J. Llibre}, New Exploration of Phase portraits Classification of QuadraticPolynomial Differential Systems based on Invariant Theory. Applied Math. No. 1(0), (2025), 24pp.
- With name \(G\) in {A. Gasull and R. Prohens}, Quadratic and cubic systems with degenerate infinity, J. Math. Anal. Appl. { bf 198} (1996), no.~1, 25--34; MR1373524
- With name \(PP22\) in {J. Llibre and H. X. Ou}, Quadratic systems with two invariant real straight lines and an invariant hyperbola, {Preprint} (2026).
- With name \(Ric. 93\) in {J. C. Artés, J. Llibre, D. Schlomiuk and N. Vulpe}, Global analysis of Riccati quadratic differential systems, Internat. J. Bifur. Chaos Appl. Sci. Engrg. { bf 34} (2024), no.~1, Paper No. 2450004, 46 pp.; MR4701478
- With name \(Fig 43 P1Z\) in {A. M. Travaglini}, Integrability and geometryof quadratic differential systems with invariant hyperbolas, {Ph. D., Uni. de Sao Paulo} (2026).
- With name \(20\) in {A. Gasull, S. Li Ren and J. Llibre}, Chordal quadratic systems, emph{Rocky Mountain J. Math.}, textbf{16}, no. 4 (1986), 751--782.
- With name \(QS170_{1}^{(7)}\) in {J. C. Artés and N. Vulpe}, The codimension of the phase portraits for degenerate quadratic differential systems, Bul. Acad. c Stiin c te Repub. Mold. Mat. { bf 2024}, no.~3(106), 29--53; MR4967334
Neighbours of Codimension 8
- Through the border \(QS208_{1}^{(8)}\), by means of a bifurcation of type \(deg\), we reach the neighbor \(QS170_{1}^{(7)}\).
